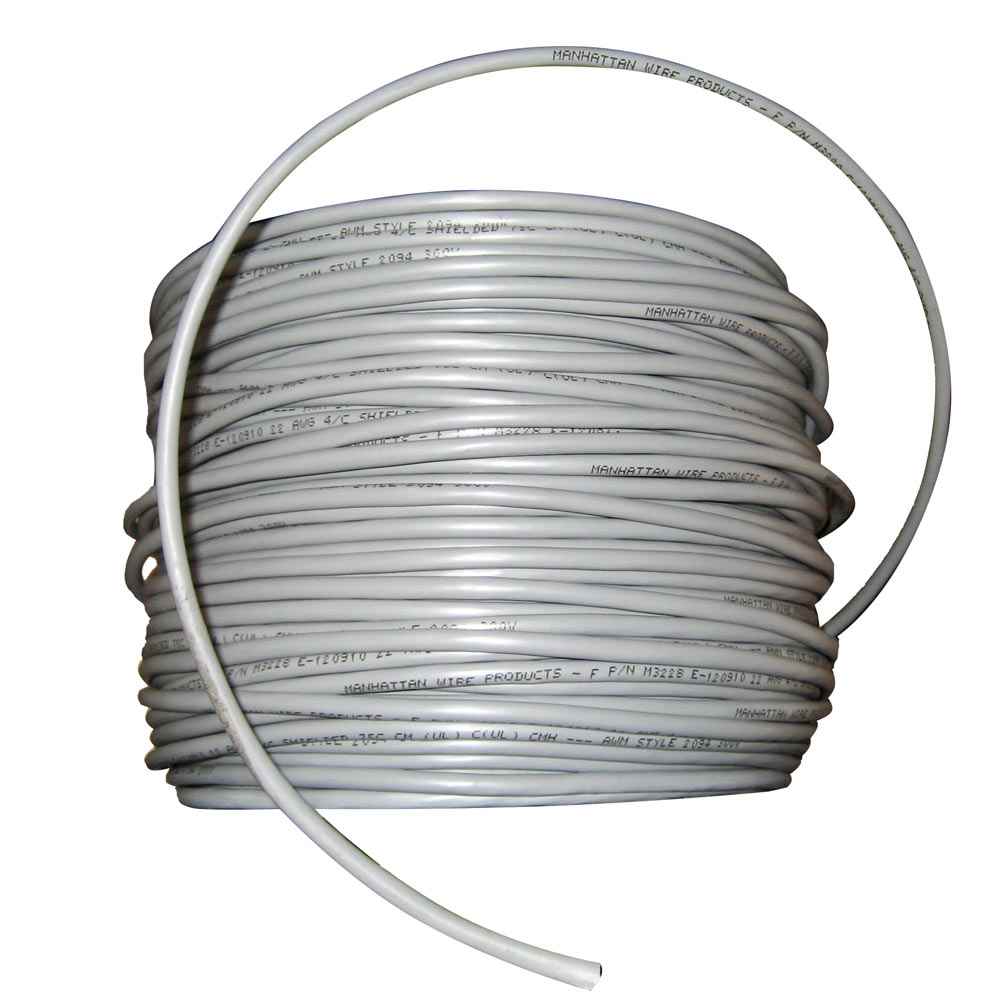

22/4 Shielded Comm Cable - NMEA 0183 - Cable By The Foot - Grey
22/4 Shielded Comm Cable - NMEA 0183 - Cable By The Foot
NEC RATING: CMP, NEC Article 800
APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music)
Construction Parameters:
Electrical & Environmental Properties:
Mechanical Properties:
NEC RATING: CMP, NEC Article 800
APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music)
Construction Parameters:
- Conductor 22 A WG Bare Copper
- Stranding 7 x 30
- Insulation Material Flex Plenum PVC
- Insulation Thickness 0.008" Nom.
- Number of Conductors: 4
- (2 Shielded) (2 Unshielded)
- Shield 100% Aluminum Polyester Foil
- Drain Stranded Tinned Copper
- Jacket Material Flex Plenum PVC
- Jacket Thickness 0.015" Nom.
- Overall Cable Diameter 0.154" Nom.
- Approximate Cable Weight 19 lbs/1M' Nom.
- Flame Rating NFP A 262 Flame Test
Electrical & Environmental Properties:
- Temperature Rating -10°C To +60°C
- Operating Voltage 300 V RMS
- Max. Capacitance Between Conductors@ 1 KHz 55 pt/ft Nom.
- Capacitance Between Conductors to Shield@ 1 KHz 99 pt/ft Nom.
- DC Resistance per Conductor@ 20° C 17 Ohms/1M' Nom.
- Insulation Colors: Black, Red, White, Green
- Jacket Color: Grey
- RoHS Compliant Yes
Mechanical Properties:
- Max. Recommended Pull Tension 51lbs
- Min. Bend Radius (Install) 1.6"
$0.66
Original: $2.20
-70%22/4 Shielded Comm Cable - NMEA 0183 - Cable By The Foot - Grey—
$2.20
$0.66Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
22/4 Shielded Comm Cable - NMEA 0183 - Cable By The Foot
NEC RATING: CMP, NEC Article 800
APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music)
Construction Parameters:
Electrical & Environmental Properties:
Mechanical Properties:
NEC RATING: CMP, NEC Article 800
APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music)
Construction Parameters:
- Conductor 22 A WG Bare Copper
- Stranding 7 x 30
- Insulation Material Flex Plenum PVC
- Insulation Thickness 0.008" Nom.
- Number of Conductors: 4
- (2 Shielded) (2 Unshielded)
- Shield 100% Aluminum Polyester Foil
- Drain Stranded Tinned Copper
- Jacket Material Flex Plenum PVC
- Jacket Thickness 0.015" Nom.
- Overall Cable Diameter 0.154" Nom.
- Approximate Cable Weight 19 lbs/1M' Nom.
- Flame Rating NFP A 262 Flame Test
Electrical & Environmental Properties:
- Temperature Rating -10°C To +60°C
- Operating Voltage 300 V RMS
- Max. Capacitance Between Conductors@ 1 KHz 55 pt/ft Nom.
- Capacitance Between Conductors to Shield@ 1 KHz 99 pt/ft Nom.
- DC Resistance per Conductor@ 20° C 17 Ohms/1M' Nom.
- Insulation Colors: Black, Red, White, Green
- Jacket Color: Grey
- RoHS Compliant Yes
Mechanical Properties:
- Max. Recommended Pull Tension 51lbs
- Min. Bend Radius (Install) 1.6"
