Garmin 010-01961-11

Transducer; GT30-THP; Thru-Hull Pair Mount; 12 Pin; 750 Ft For Traditional And 500 Ft For SideVü Maximum Depth; 445 kHz And 800 kHz For ClearVü/SideVü CHIRP Operating Frequency; 0 To 25 Degree Deadrise; 500 Watts; 5 Feet Cable; With 12-Pin Port/ Starboard Transducers, Stainless Steel Stems, Isolation Bushings, Fairing Blocks, Y-Cable, Mounting Hardware And Installation Instructions; 1.4x53 - 0.8x30 Degree ClearVü And 1.1x53 - 0.7x30 Degree SideVü Beamwidth; For Depth And Temperature

• Mounting Location: Thru-Hull Mount
• Number Of Pins: 12 Pin
• Depth: 750 Feet For Traditional And 500 Feet For SideVü
• Power Rating: 500 Watt
• Frequency Range: 445 kHz And 800 kHz For ClearVü/SideVü CHIRP Operating Frequency
• Supported Angle: 0 To 25 Degree Deadrise
• Cable Length: 5 Feet

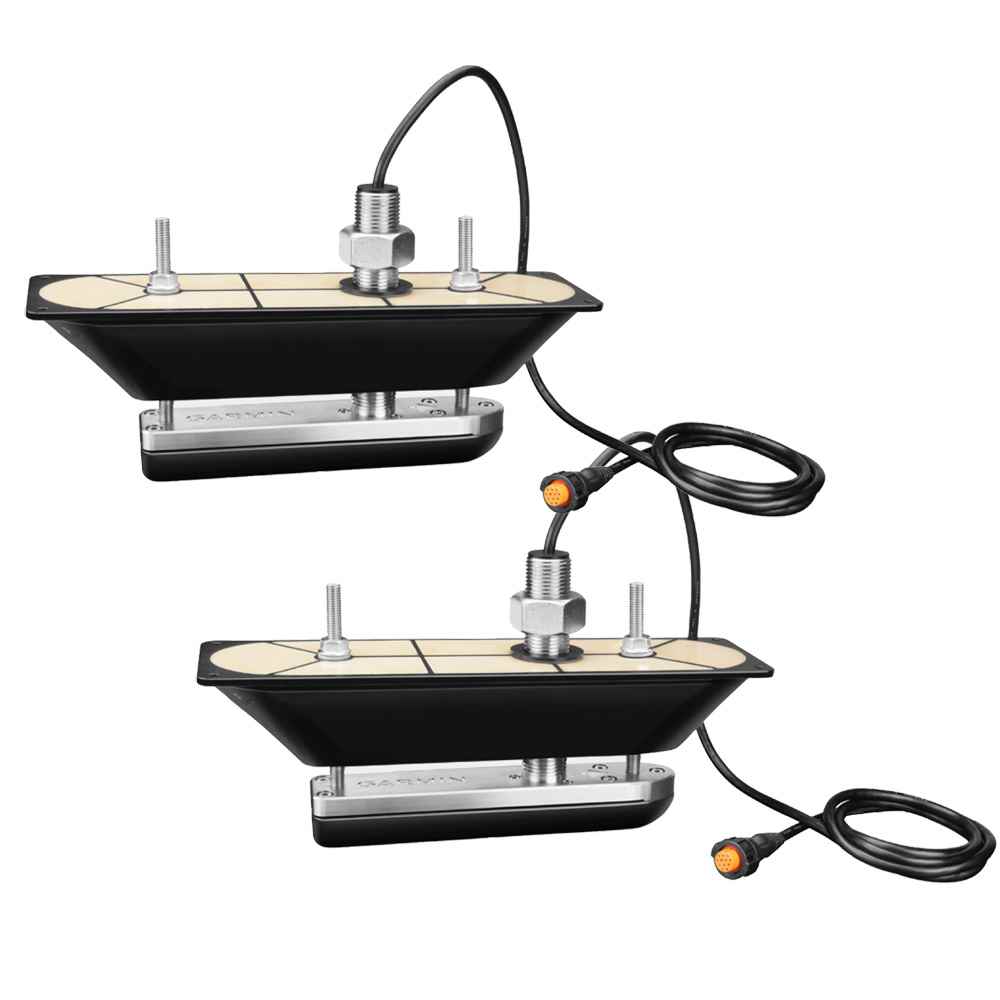

Garmin GT30-THP - Stainless Steel Thru-hull Pair DownVü/SideVü 500W (CHIRP 455/800 kHz) Scanning Transducers with Temp, for Hull Deadrises from 5° to 25° (12-pin)

Get ultra-clear sonar pictures of objects, structure and fish that pass below and to the side of your boat with these 12-pin thru-hull transducer with stainless steel stems.

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (DownVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

• GCV™ 10 Scanning Sonar Module

Features & Benefits

• Perfect For The Shallow Water Fishermen Who Want Traditional And CHIRP ClearVu Scanning Sonar With A Stainless Steel Stem
• Pair OF 12-Pin Thru-Hull Transducer Consistently Displays Clear Definition Of Objects, Structure And Fish Below And To Each Side Of The Boat
• Transducer With Built-In Fast Response Temperature Sensor Has A Power Rating Of 500 Watt Per Element
• Provides A 12-Pin Port And Starboard Transducers With Stainless Steel Stems, Isolation Bushings, Fairing Blocks, Y-Cable, Mounting Hardware And Installation Instructions
• Limited 2 Year Warranty
