Lippert (Schwintek) In Wall Slide Out System

Lippert (Schwintek)  In Wall Slide Out System

Make: Lippert (Schwintek)

Part Number(s): V000425321 | RP0-0001810858 | C01299797

Variant Tag: INVVII 23 X 75 1/4 HC65 RH1 C-BK R-CL-1.56

Motor Specs: 236575 (300:1 ratio)

System Type: Inverted

Dimensions:

• 23" Rack Length
• 75 1/4" Column Height
• 1.56" notch

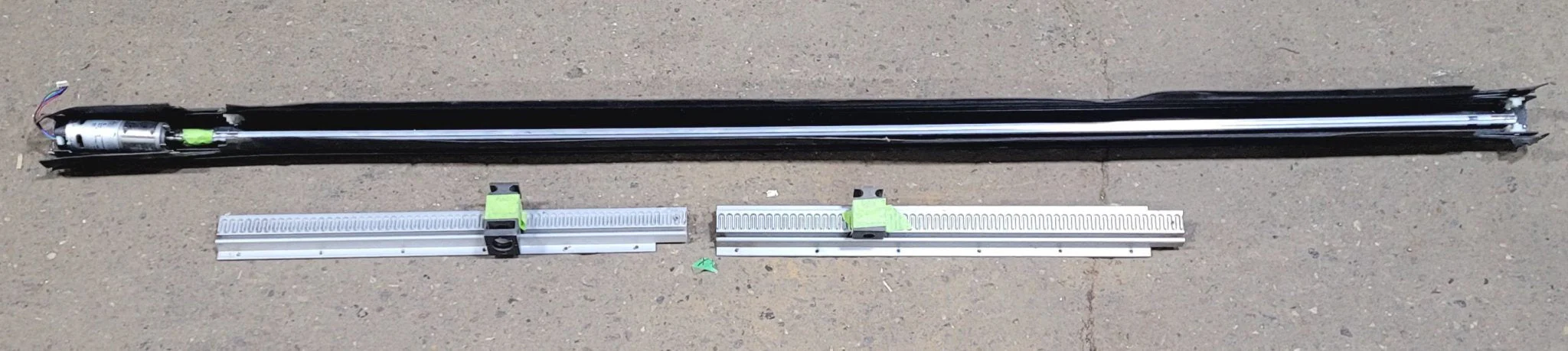

Includes (for each side):

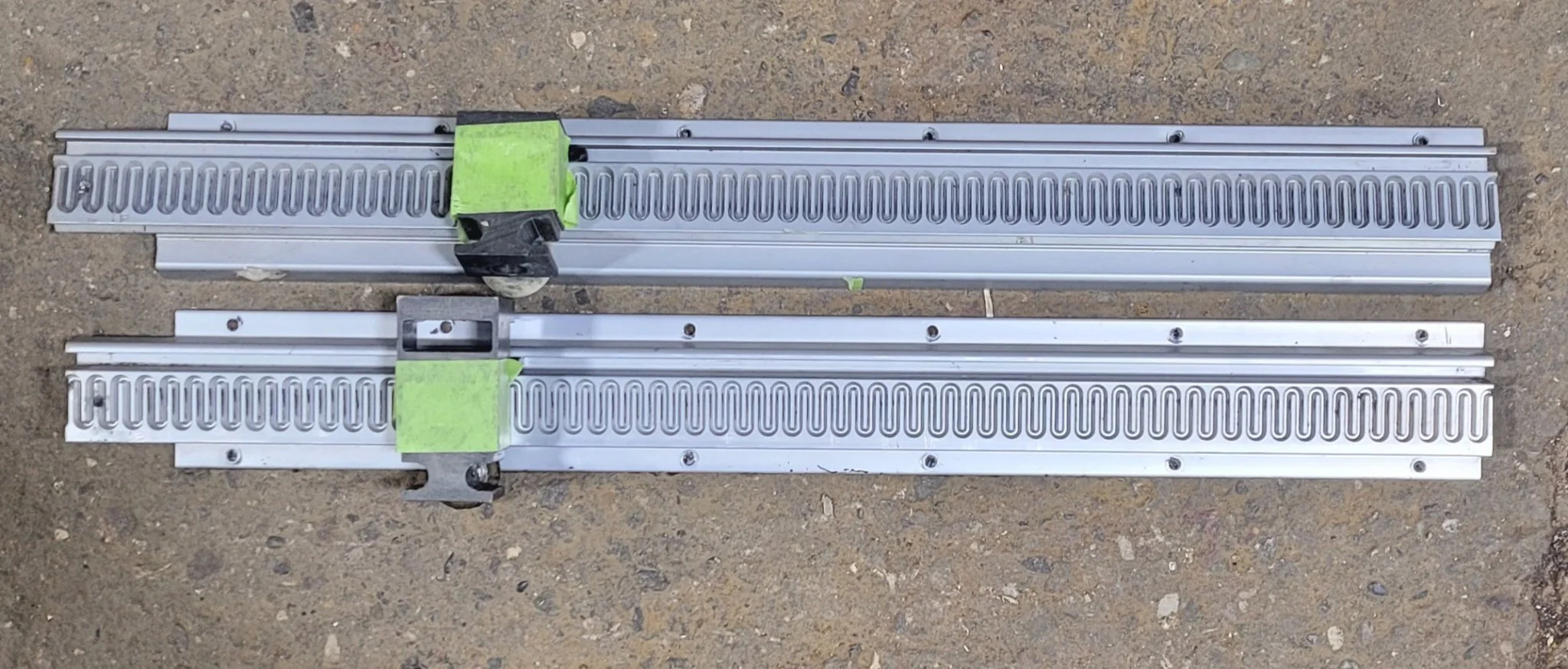

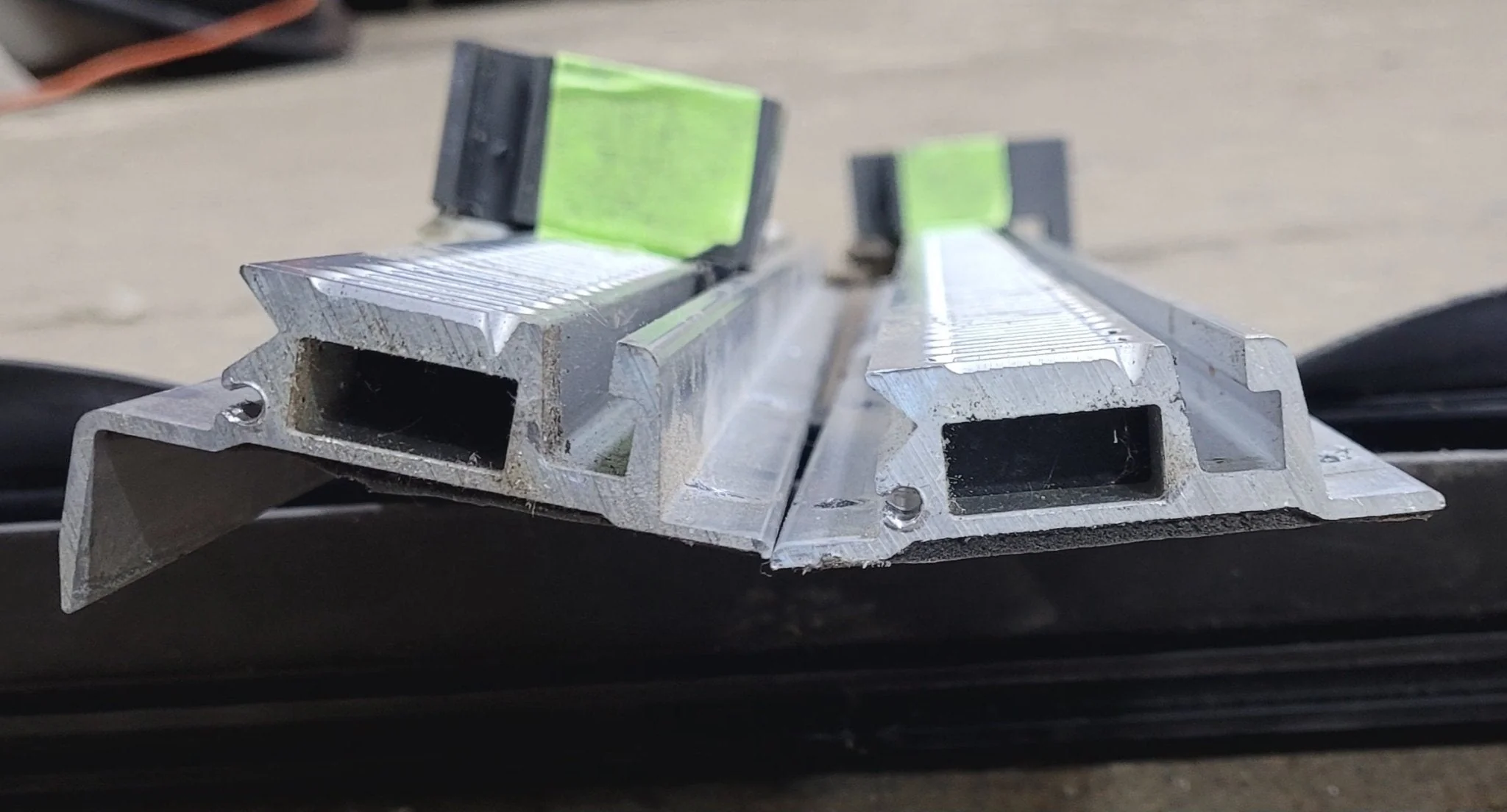

• 1 upper gear rack
• 1 lower gear rack

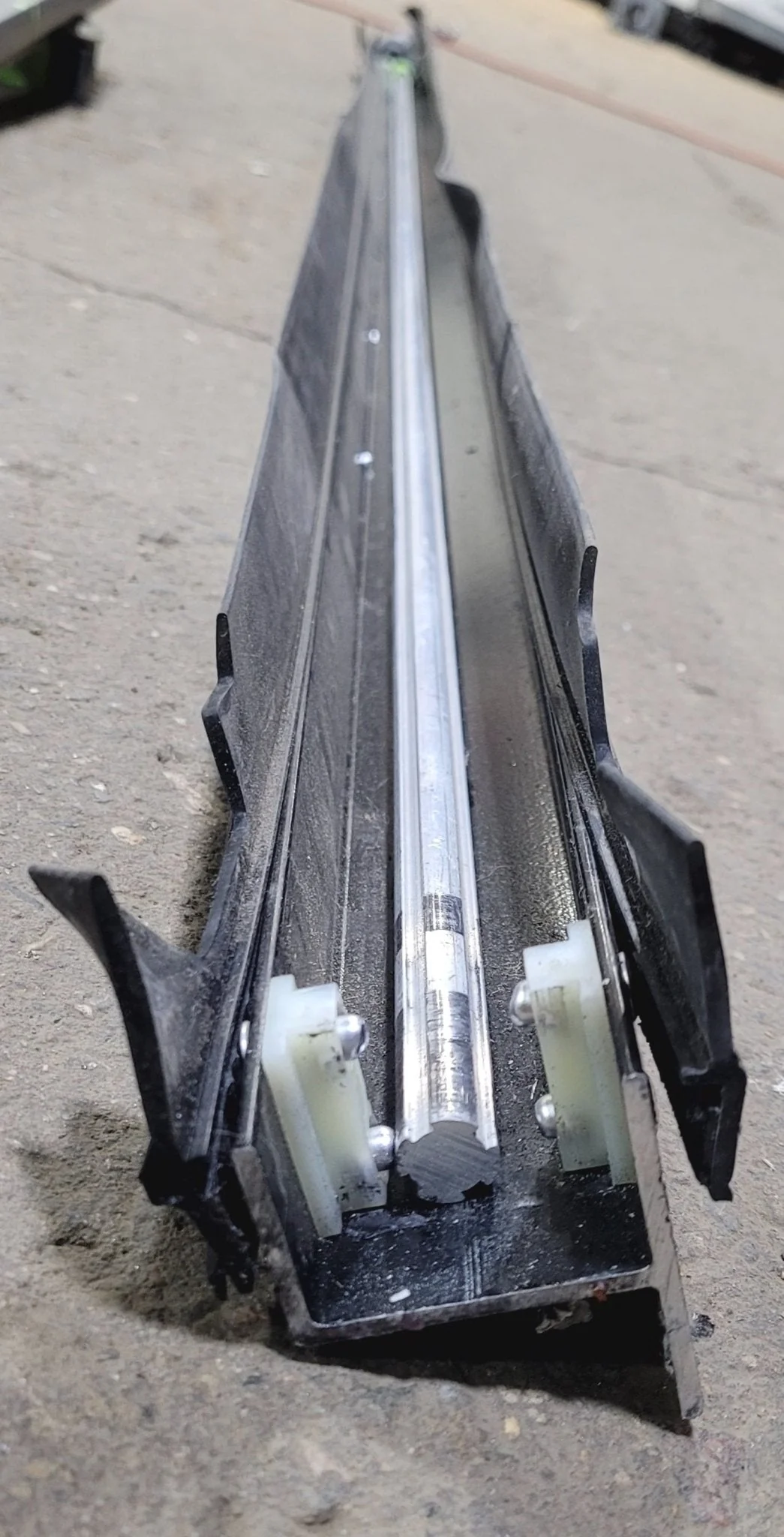

• 1 H - column

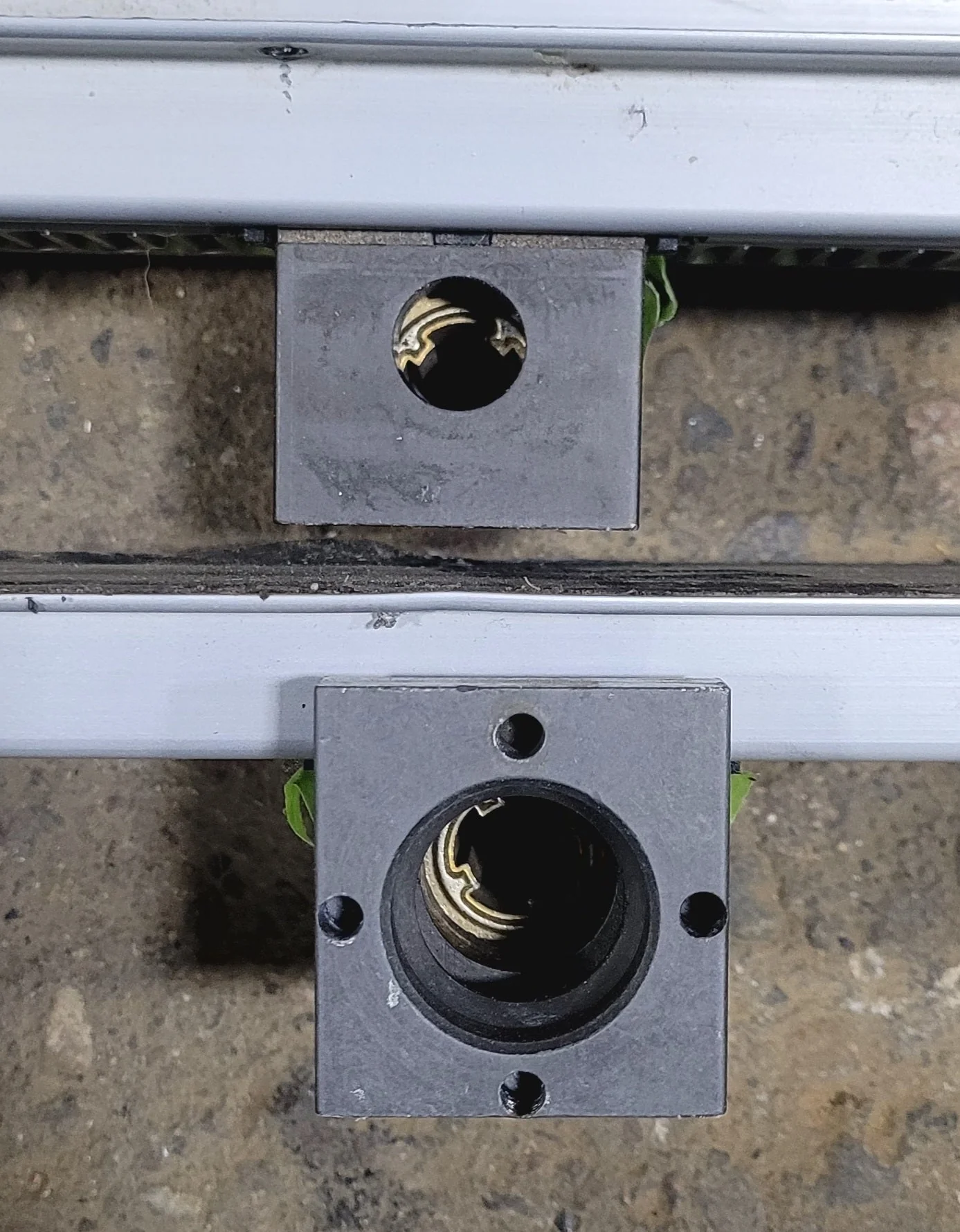

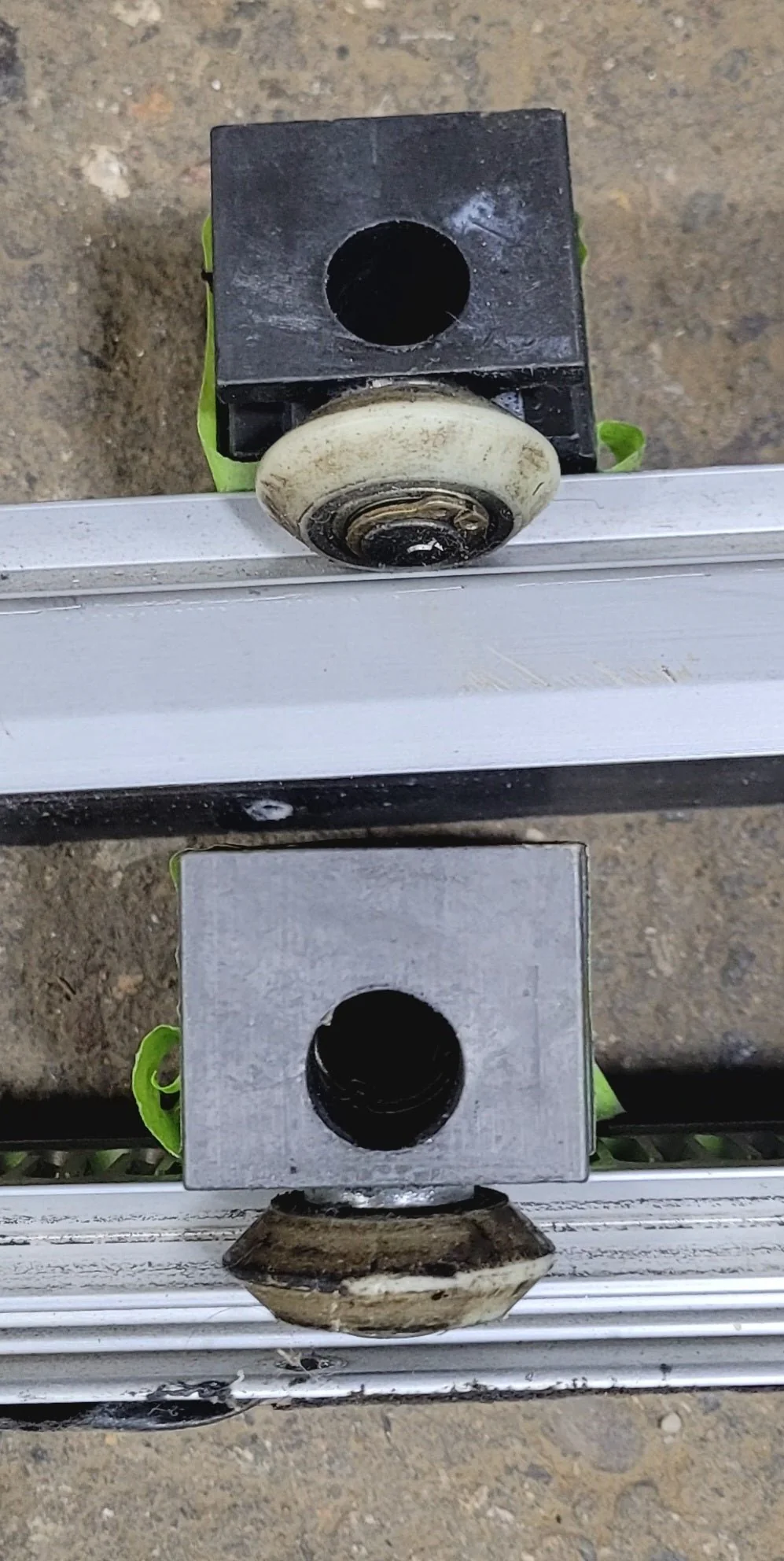

• Upper bearing block, with motor
• Lower bearing block

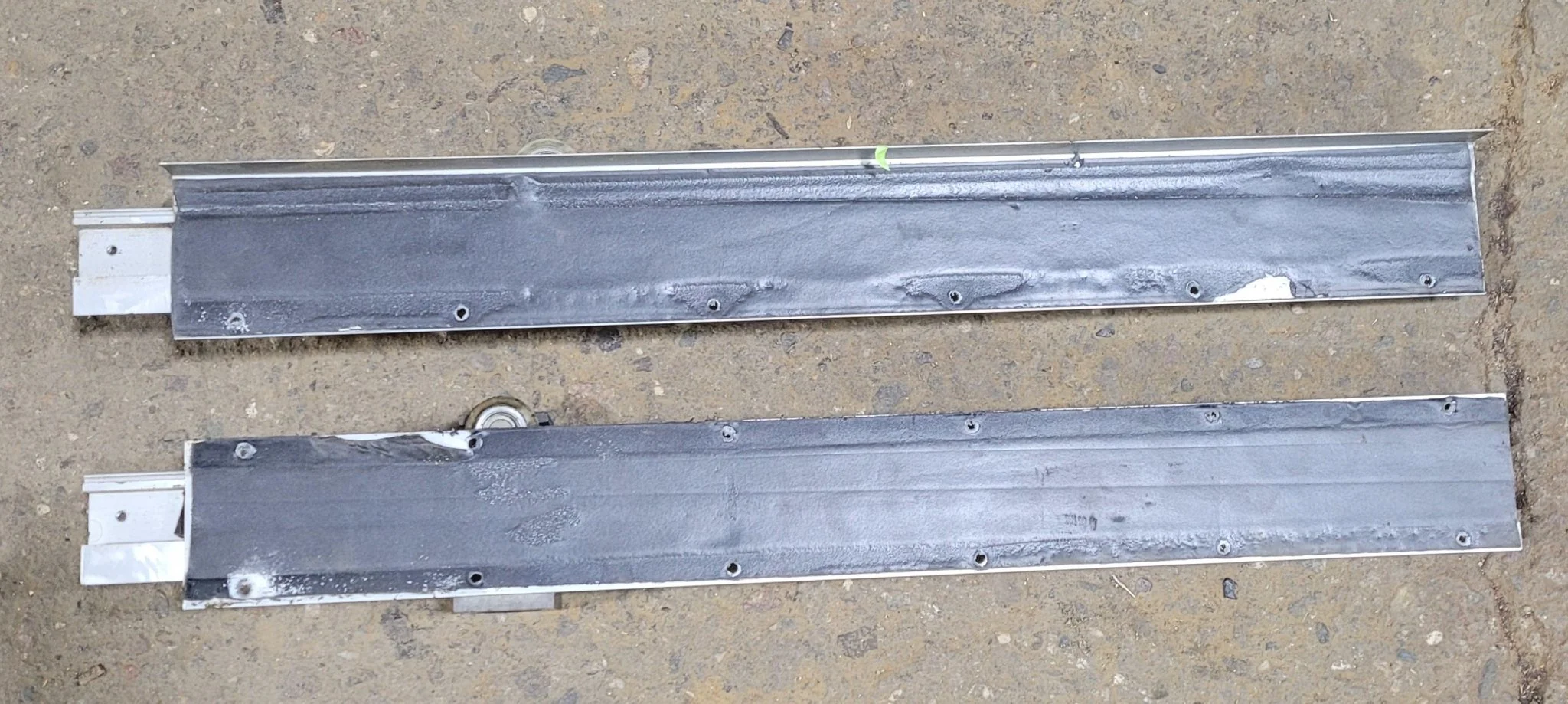

**Note: Does not include hardware, or any installation manuals. Slide seal on motor side has some damage, as shown. This item is considered a "new/ used" item, new condition- has never been installed, not in original packaging- may have minor imperfections due to shipping &/ storage, price reflected**
