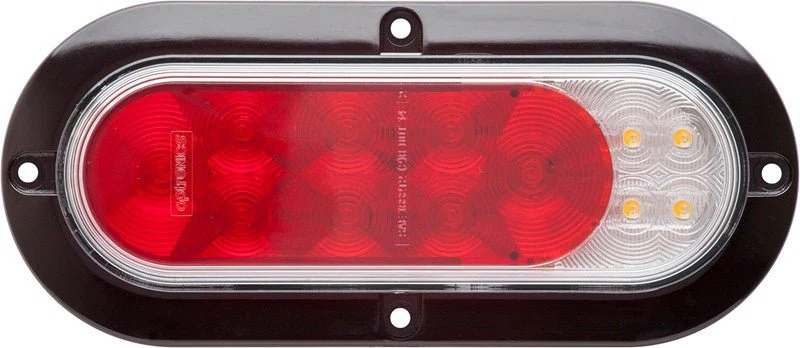

Optronics Trailer Lights - STL211XRFHB - Stop, Tail, Turn, Backup - Submersible - Oval - Red/Clear Lens

7-1/2" x 3-1/4" Oval. Waterproof light serves 4 functions: brake, tail, turn, and backup light. Red lens is set inside of clear lens. Mounts on surface of trailer with built-in flange - hardware not included. 4-Wire pigtail. 16 Diodes.

Features:

• Oval trailer tail light serves 4 functions
  • Stop light
  • Tail light
  • Turn signal light
  • Built-in backup light eliminates the need to cut holes in your trailer for 2 lights
• Sonically sealed, waterproof housing and lens unit is submersible
• Durable surface-mount technology (SMT) construction of LED circuit board
  • Better withstands shock and vibration
  • Allows improved heat distribution and thinner construction
• LEDs make great replacements for incandescent lights
  • Last 50 times longer
  • More efficient - provide brighter light with less power output
  • No bulbs to replace - no brittle filaments
• Durable polycarbonate lens and housing
• Red lens set inside white lens with red and white LEDs
  • Red lens with red LEDs for tail light
  • Clear lens with white LEDs for backup light
• Mounts on surface of trailer with built-in black flange - hardware not included
• 4-Wire pigtail
  • White wire for ground
  • Brown wire for backup light
  • Red wire for brake light
  • Black wire for tail light
• DOT compliant
  • Meets FMVSS 108 and CMVSS 108 requirements for automotive lighting

Specs:

• Overall dimensions: 7-1/2" wide x 3-1/4" tall x 3/4" deep
  • Light face dimensions: 6-1/2" wide x 2-1/4" tall
• Wire length: 8"
• Diodes: 16
• Power draw at 12.8 volts:
  • Stop/turn light: 0.265 amps
  • Tail light: 0.24 amps
  • Backup light: 0.3 amps
